Transforming a Jaguar F‑Type R Into a Supercharged Monster
The Jaguar F‑Type R is already a rare blend of beauty, brutality, and refinement. Its supercharged 5.0L AJ133 V8 delivers spine‑tingling sound and serious pace right from the factory. But what happens when you approach this platform with a system-level engineering mindset, using a tightly integrated ecosystem of hardware and software that’s been developed, tested, and validated together?
You unlock something extraordinary!

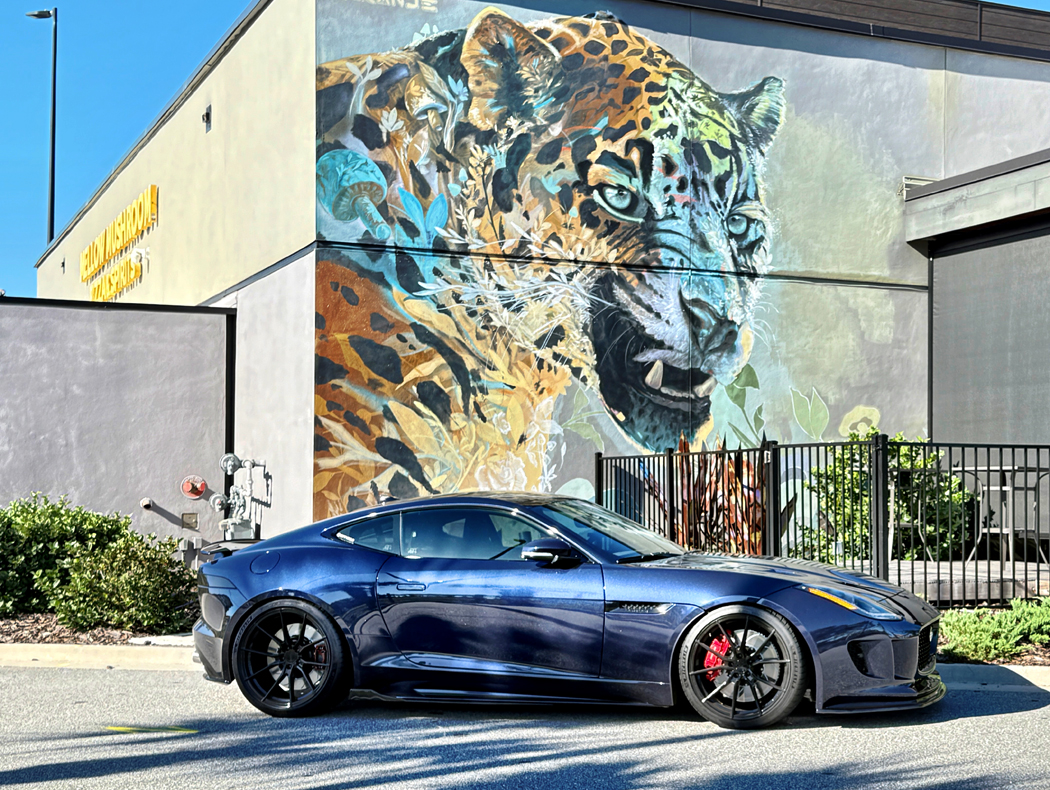

This 2016 Jaguar F‑Type R AWD is a showcase of what VelocityAP brings to the equation: a holistic, reliability‑first approach to performance that turns potential into pavement‑shredding reality. With our Stage 3 ECU tune, dual‑pulley drive system, intake and exhaust upgrades, ZF 8HP TCU tuning, cooling and fueling support, and brake system enhancements, this car makes close to 700 BHP, while retaining the composure and drivability that makes a Jaguar, a Jaguar.
The Build at a Glance
- VelocityAP Stage 3 ECU Tune
- VAP ZPE Griptec Upper Pulley
- VelocityAP Oversized Crank Pulley
- VelocityAP Carbon Fiber Intake System
- VelocityAP 200‑Cell High‑Flow Sport Catalysts
- VelocityAP Valvetronic X‑Pipe Exhaust
- VelocityAP ZF 8HP TCU Tune
- Pierburg CWA150 Coolant Pump
- VMP Fuel Pump Booster
- VelocityAP Girodisc Two‑Piece Rotors + Porterfield R4‑S Pads
The VelocityAP Difference: Integrated Engineering – Not Just Parts
Our Jaguar/Land Rover supercharged program is the product of years of R&D, road and dyno testing, and real‑world validation. Every component you see here was designed to work together, mechanically, thermally, and electronically.
We don’t tune in a vacuum. Our ECU and TCU calibrations are built to complement our pulleys, intake, catalysts, and exhaust, with fueling and cooling strategies optimized to support sustained performance, not just peak numbers
Using proprietary data logging tools, we continuously monitor airflow, fueling, knock resistance, and thermal behavior. That feedback loop allows us to refine for maximum safe performance—maintaining factory systems integration and drivability.

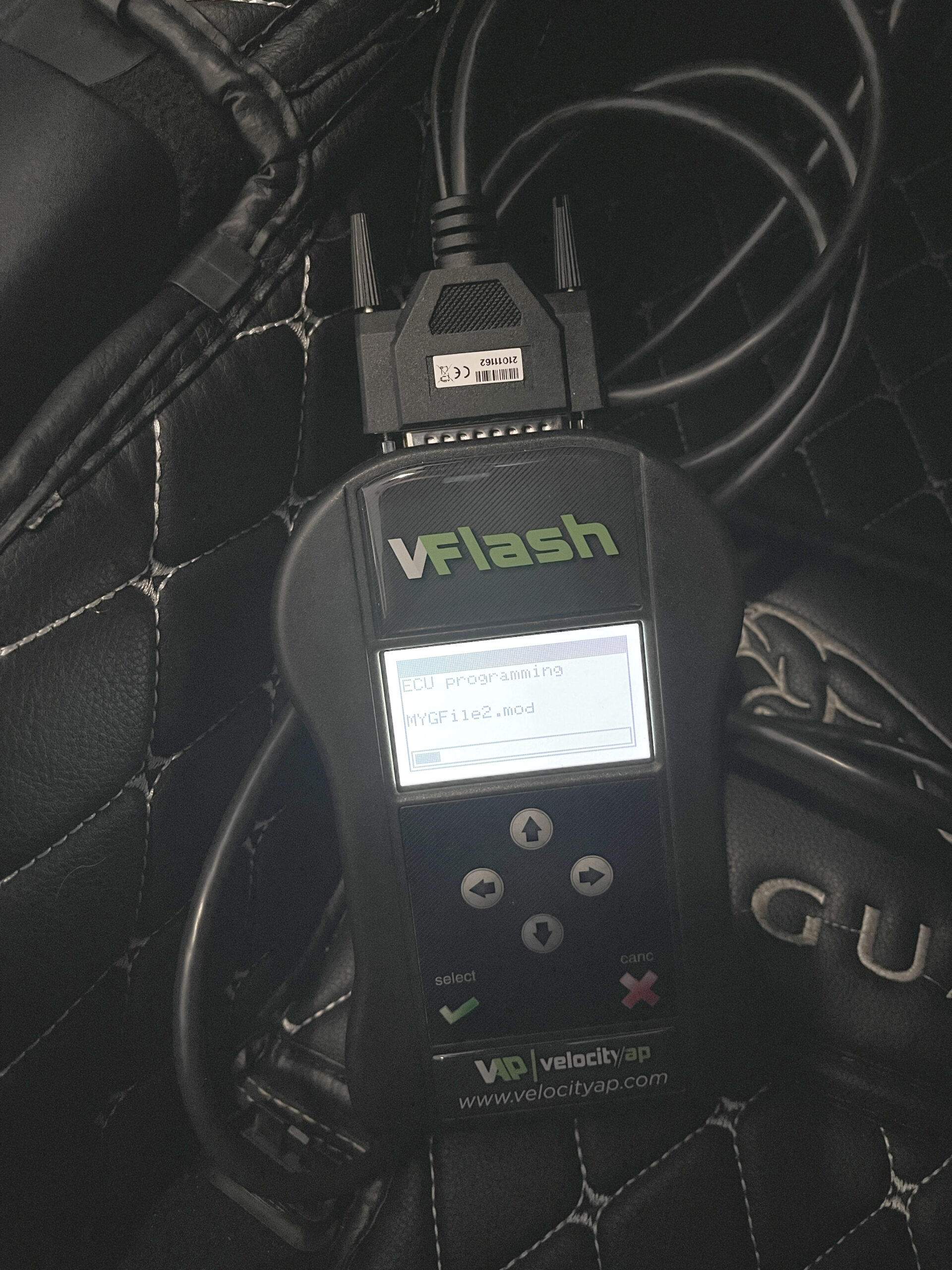

The Brain: VelocityAP Stage 3 ECU Calibration
At the heart of this transformation is our Stage 3 ECU tune, custom‑developed for this exact vehicle and its hardware configuration. Modern performance is a software game as much as a hardware one. Our Stage 3 calibration is purpose‑built for a dual‑pulley drive ratio, upgraded intake airflow, 200‑cell catalysts, and supporting fuel/cooling upgrades. The result is near‑instant response, a fatter midrange, and top‑end power that keeps pulling where stock calibration tapers off, all while staying tightly integrated with factory safety systems.
The Boost: Dual-Pulley System
One of the most effective ways to unlock the AJ133’s potential is to increase Eaton TVS supercharger speed. This vehicle uses our dual‑pulley setup. Immediate torque everywhere, stronger mid‑range, and a top‑end that doesn’t quit. Because we tune specifically for this hardware, you get the power without the fragility.

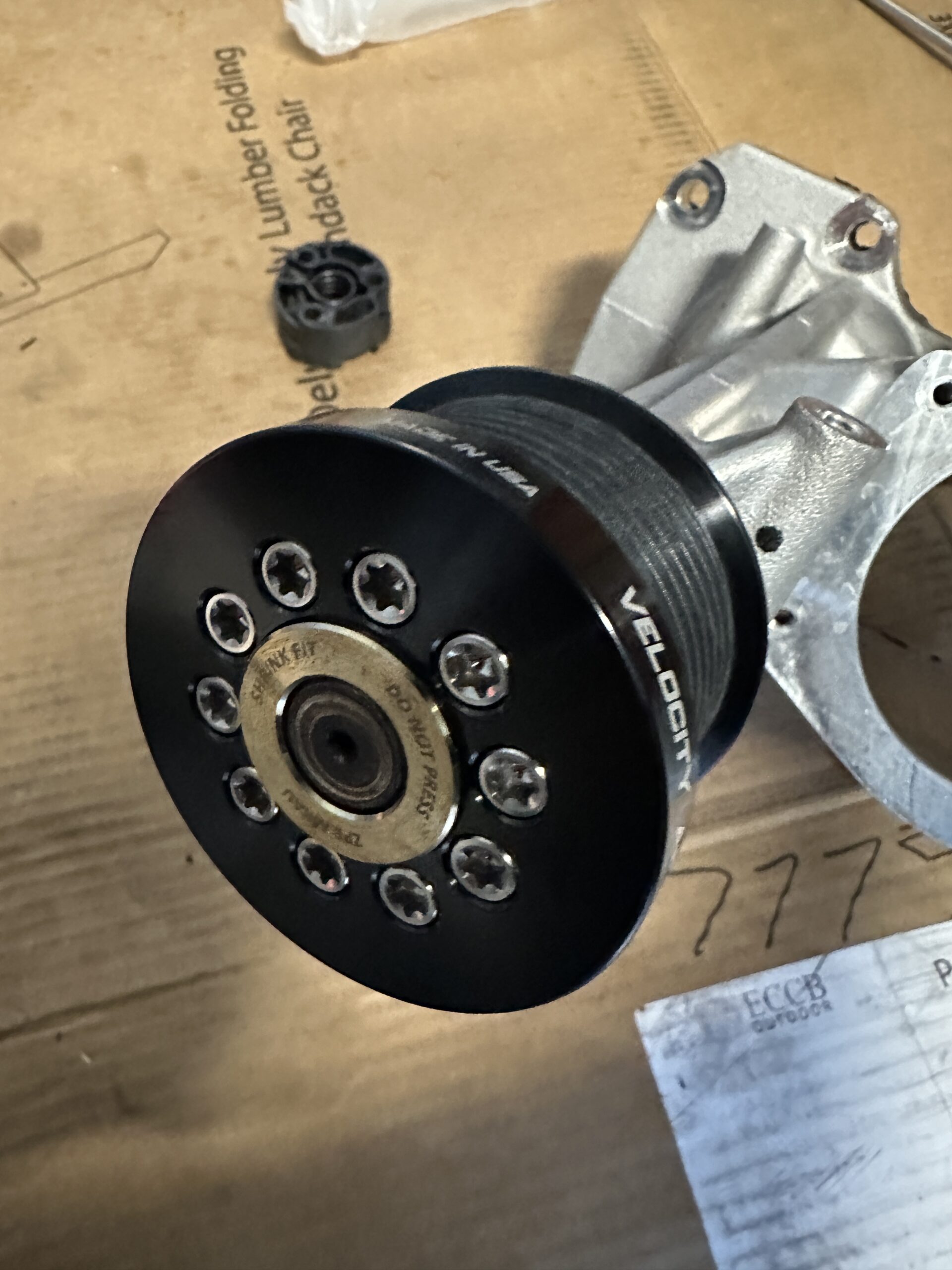

- VAP ZPE Griptec Upper Pulley

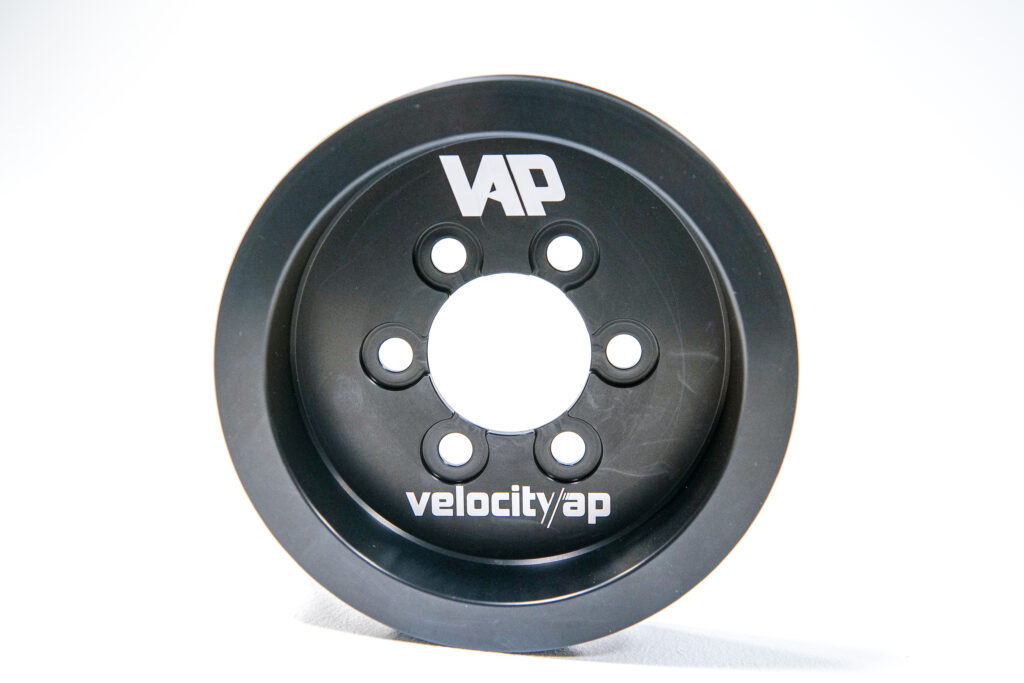

The Griptec micro‑texture dramatically improves belt traction and reduces slip under high load, critical at elevated blower speeds. Our two‑piece design further simplifies installation and enhances long‑term reliability. - VelocityAP Oversized Crank Pulley
Increases the overall drive ratio, raising boost and mass airflow. Our crank pulley adds roughly 3.5 PSI and is calibrated with our ECU tune to maintain proper fueling and safe operating parameters.

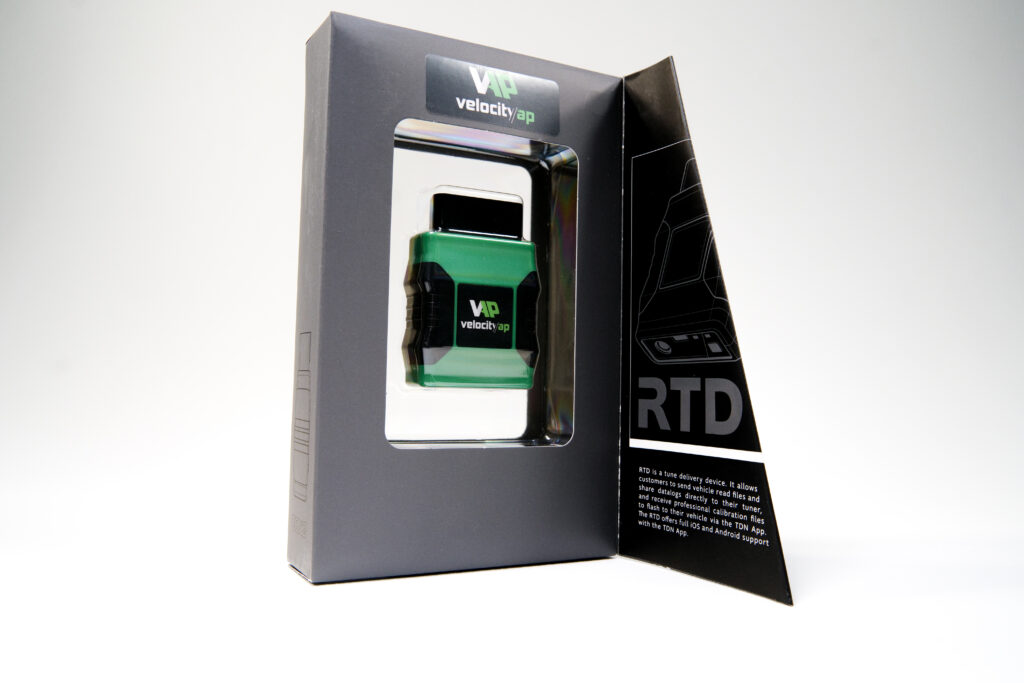

The Shift: VelocityAP TCU Tune for ZF 8HP
With more power comes the need for intelligent torque management. Our TCU calibration unlocks the transmission’s potential to match the engine’s new character. Shifts are decisive yet civilized, and you get a more connected, more engaging driving experience.
Key improvements include faster and smoother upshifts and downshifts, increased torque allowance and adjustments to the RPM limiter.
The Breath: Intake & Exhaust Done Right

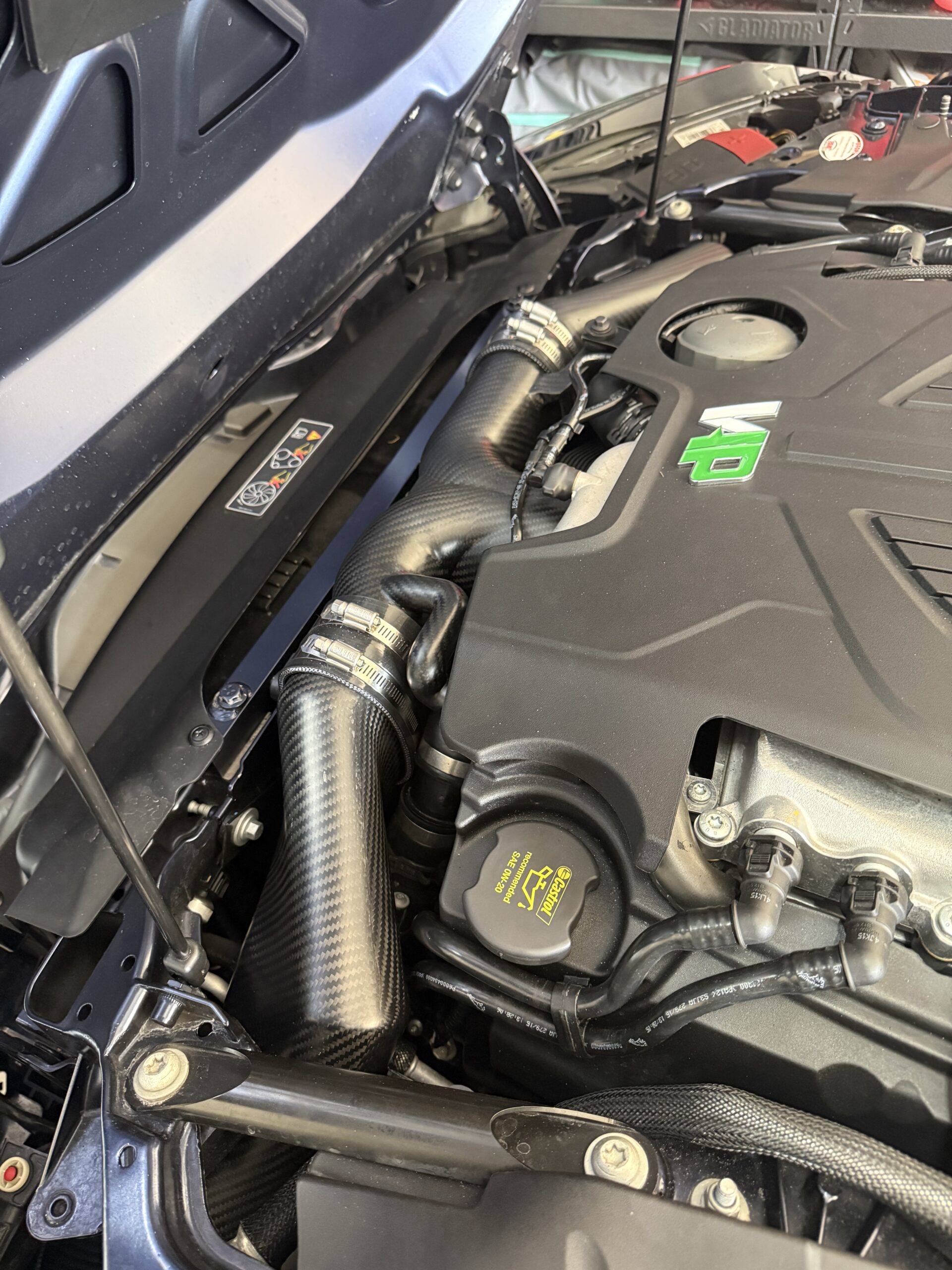

VelocityAP Carbon Fiber Intake System
Pushing more boost only works if the engine can ingest cooler, denser air and do so with stable MAF readings and balanced bank-to-bank flow. Our carbon intake reduces restriction, preserves metering accuracy, and elevates engine bay aesthetics. The amplified supercharger whine is the icing on the cake.

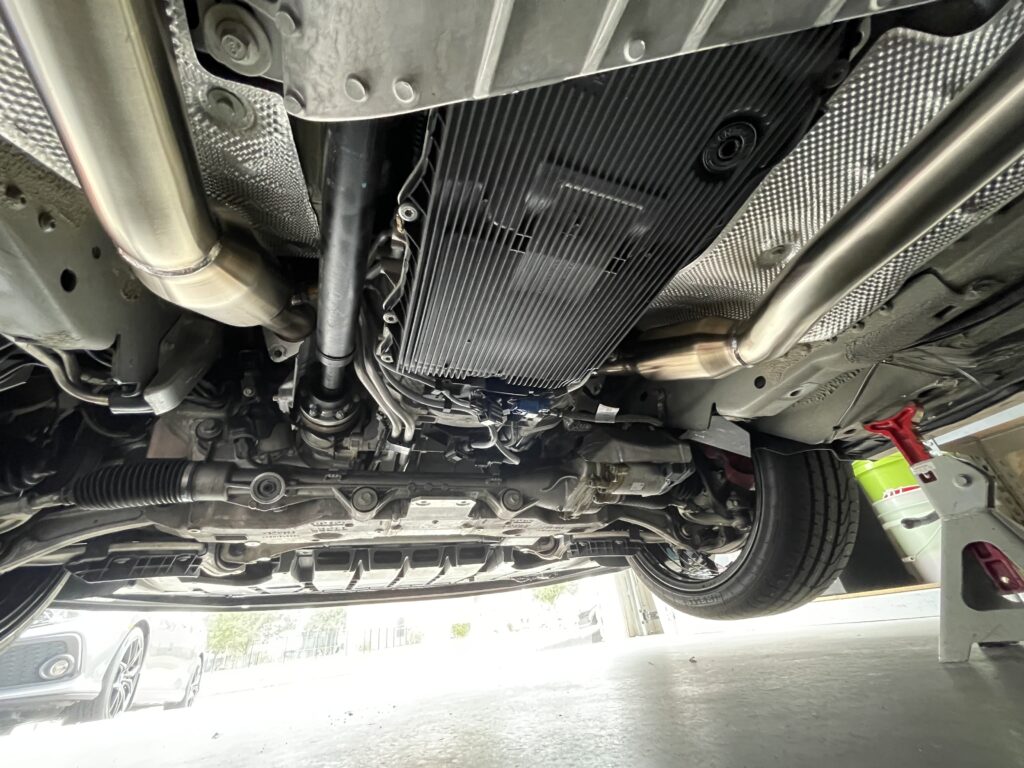

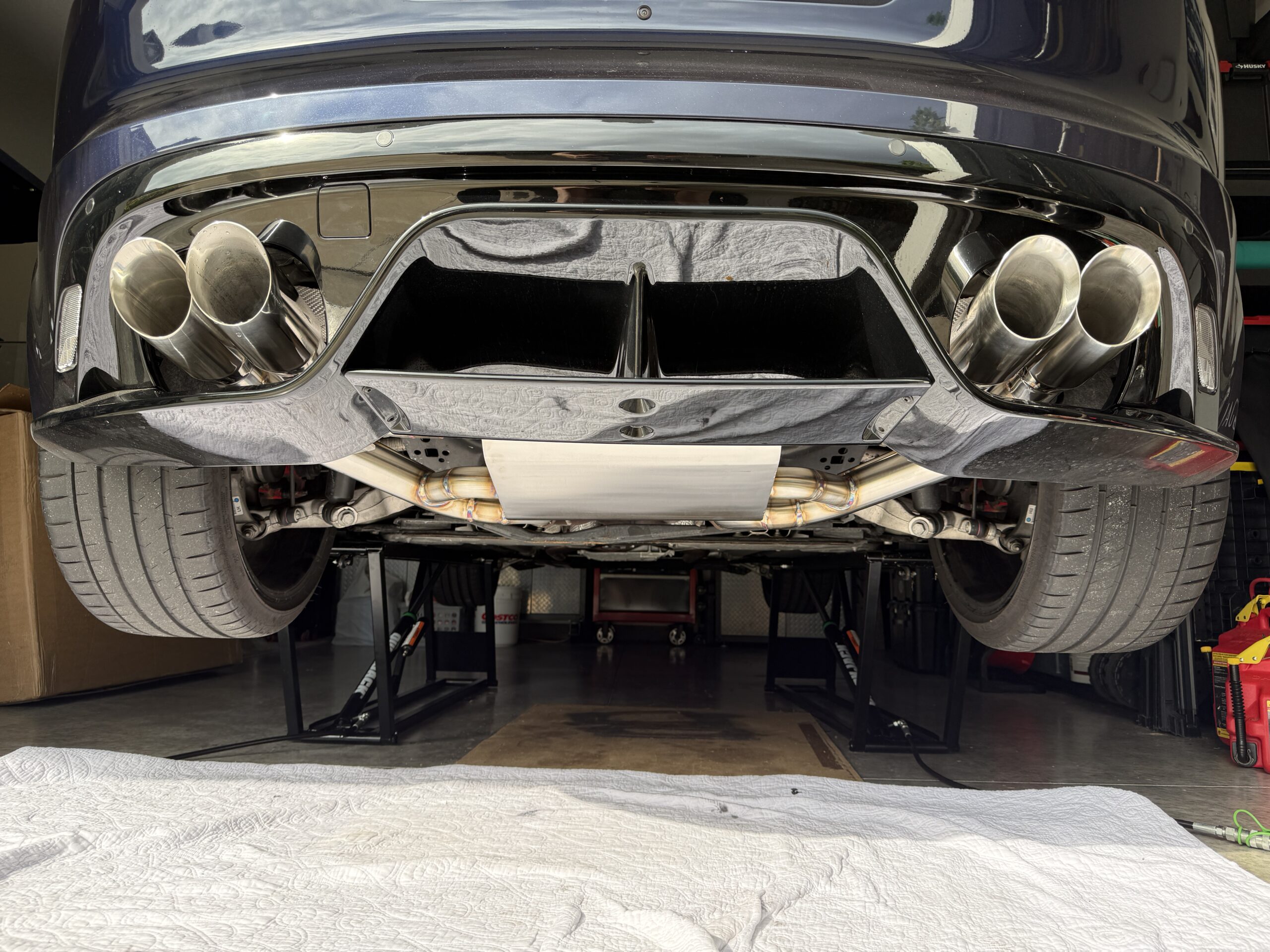

200‑Cell High‑Flow Sport Catalysts + Valvetronic X‑Pipe Exhaust
Factory catalysts prioritize emissions and noise control, but at higher output they create backpressure. Our 200‑cell sport cats maintain catalytic function while freeing up flow and reducing exhaust temperatures under load. Pair that with our Valvetronic X‑Pipe and you get, improved scavenging and pulse balance for efficiency and response and factory valve control retained—calm when you want it, aggressive when you don’t. Consider this the F‑Type’s signature soundtrack, just amplified!
The Endurance: Cooling & Fueling That Keep Power Consistent
Pierburg CWA150 Coolant Pump
On high‑output supercharged platforms, intercooler flow is everything. The CWA150 increases coolant flow through the charge‑cooling circuit, helping stabilize intake air temperatures and resist heat soak during repeated pulls or spirited drives.

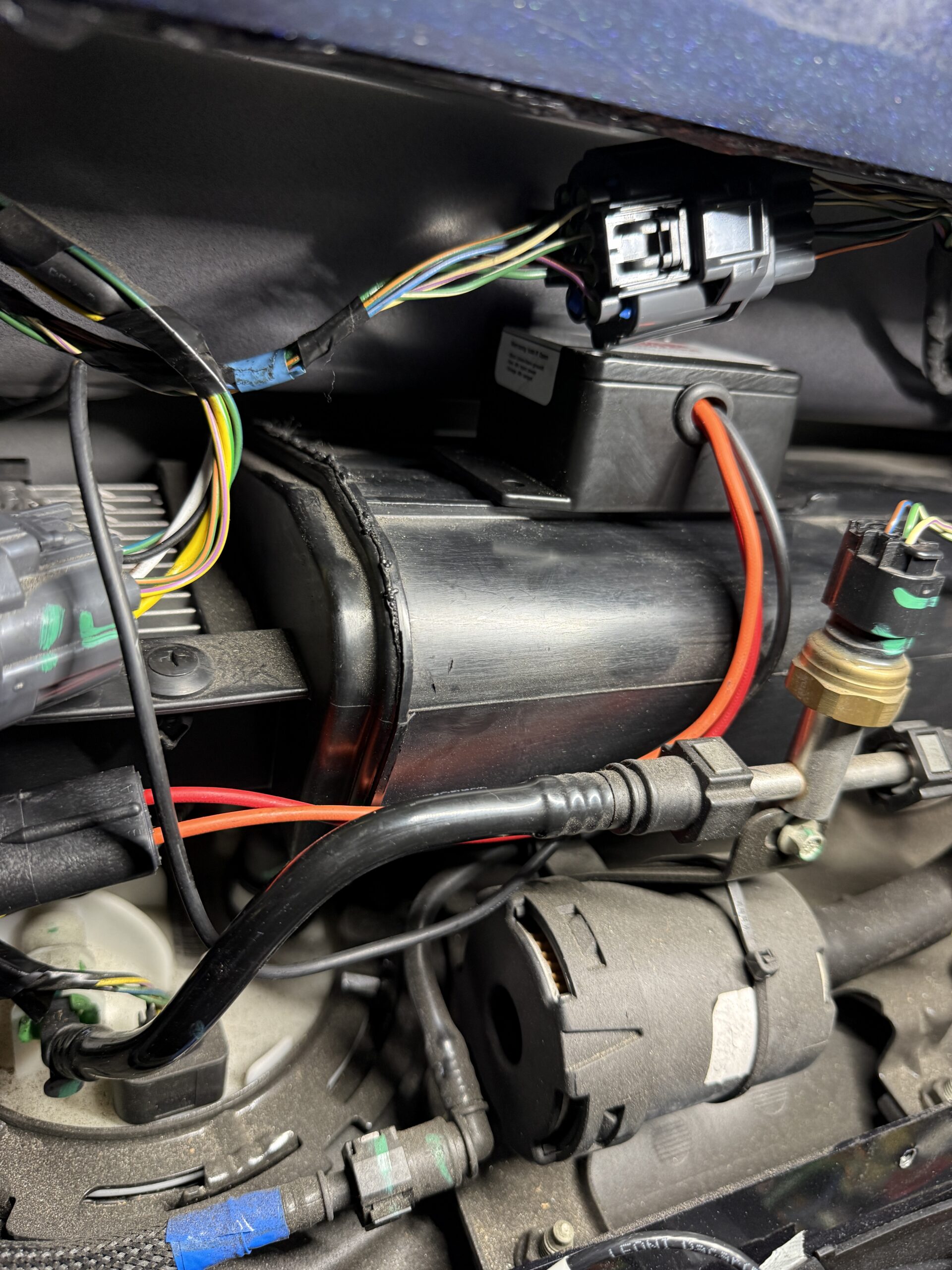

VMP Fuel Pump Booster
Elevated boost demands greater fuel volume. Under sustained load, the booster raises pump voltage, helping the fuel system hold target pressure and maintain safe AFRs. We verified the need and effectiveness via targeted data logging sessions—this is supporting hardware by evidence, not guesswork.

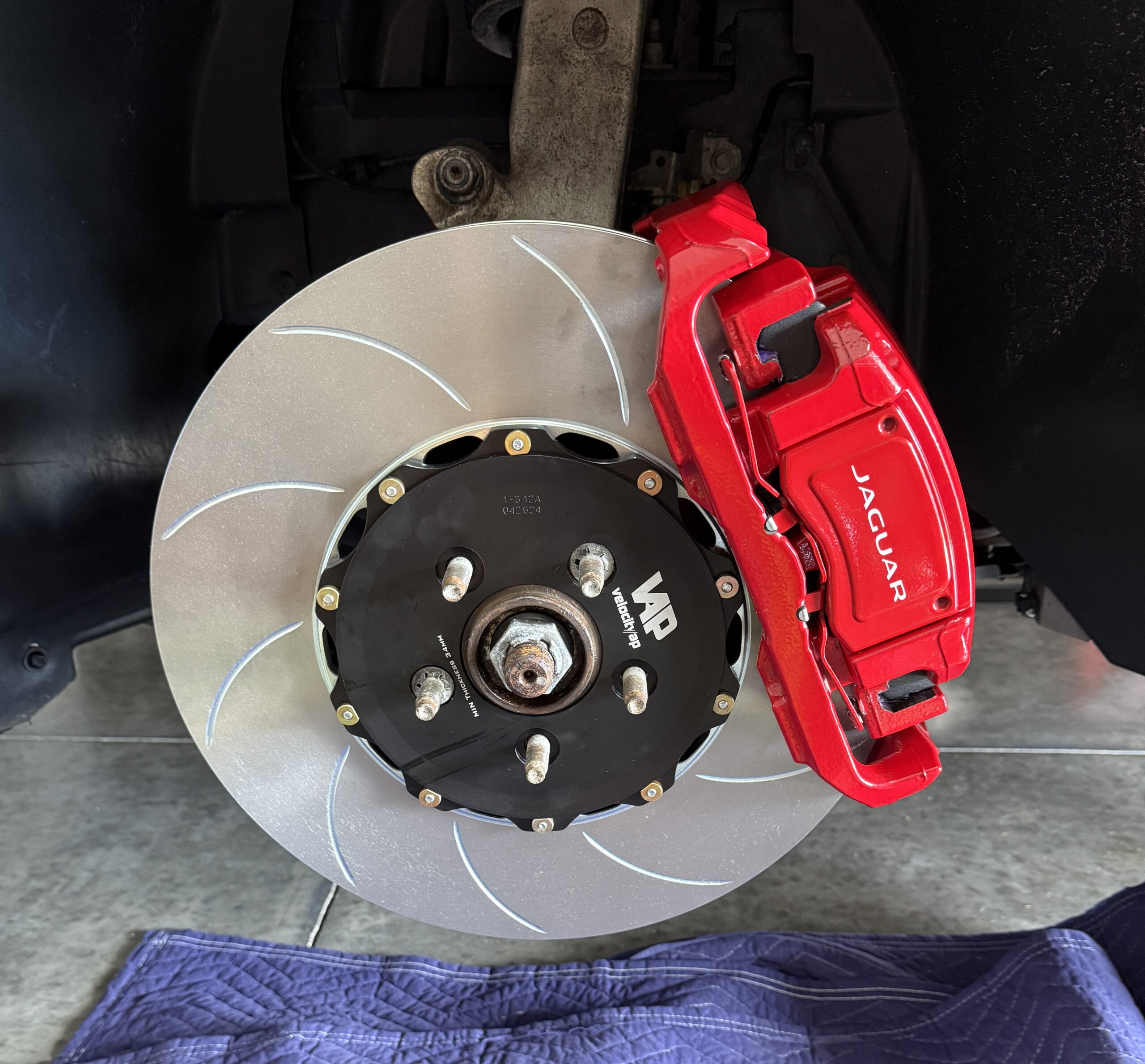

The Confidence: VelocityAP Brake Package
Power is only half the equation. To balance the build, this F‑Type R runs VelocityAP’s Girodisc two‑piece rotors with Porterfield R4‑S pads. This brings reduced unsprung mass for better ride and response, superior heat dissipation and thermal stability, and street‑friendly pad behavior with strong initial bite, low noise, and controlled dust.

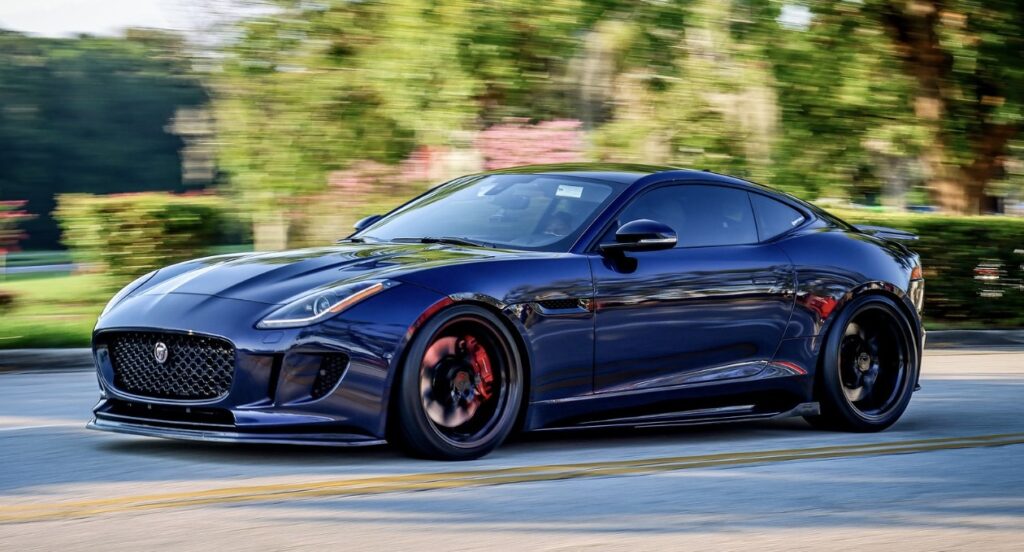

The Result: Near‑700 BHP With Factory Polish
Numbers are great, but the true test is how the car feels. This F‑Type R now delivers:
- Close to 700 BHP with the seamless drivability you expect from a modern GT
- Sharper throttle response and immediate torque across the rev range
- Composed shift logic that keeps the engine right in its sweet spot
- Thermal and fueling stability verified by our logging tools
- An exhaust note that’s equal parts symphony and thunder
This is not a collection of parts. It’s a cohesive system engineered to perform together, safely, repeatably, and addictively.
What’s Next: The Road to 800+ BHP

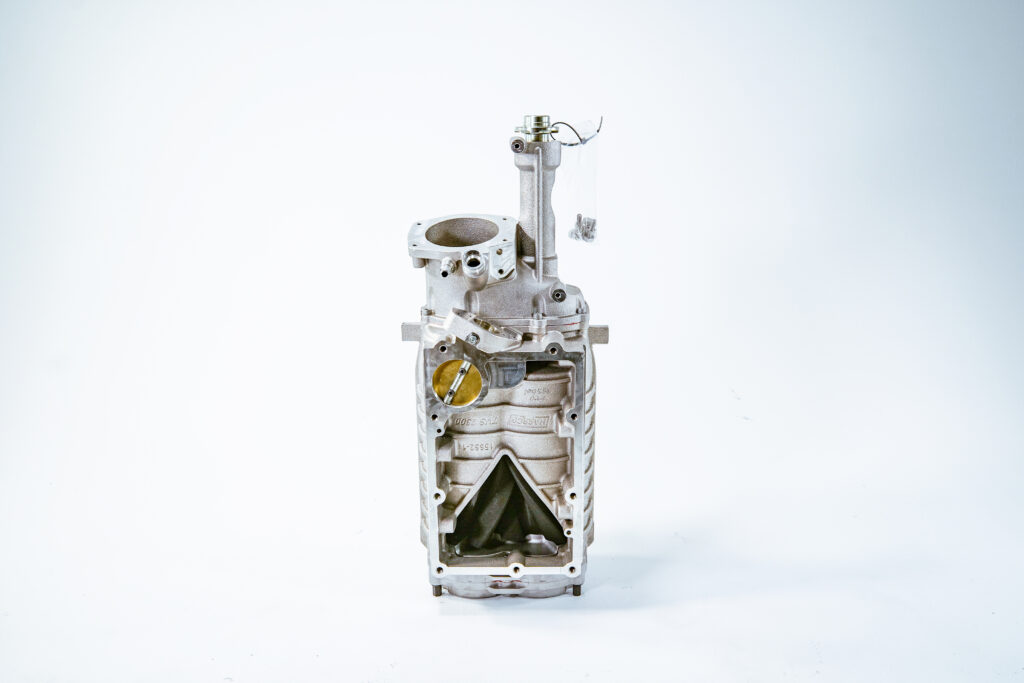

This owner isn’t done. Future VelocityAP enhancements on the radar include our newly released camshaft set and potentially the Harrop TVS2300 supercharger upgrade. With our recent announcements of breaking the 800 BHP barrier on this platform, the next chapter promises to be even more explosive.
For more information on any of these product solutions or questions how we can help you with your own Jaguar or other supported platforms, use our contact us section on our website. We look forward to hearing from you.
